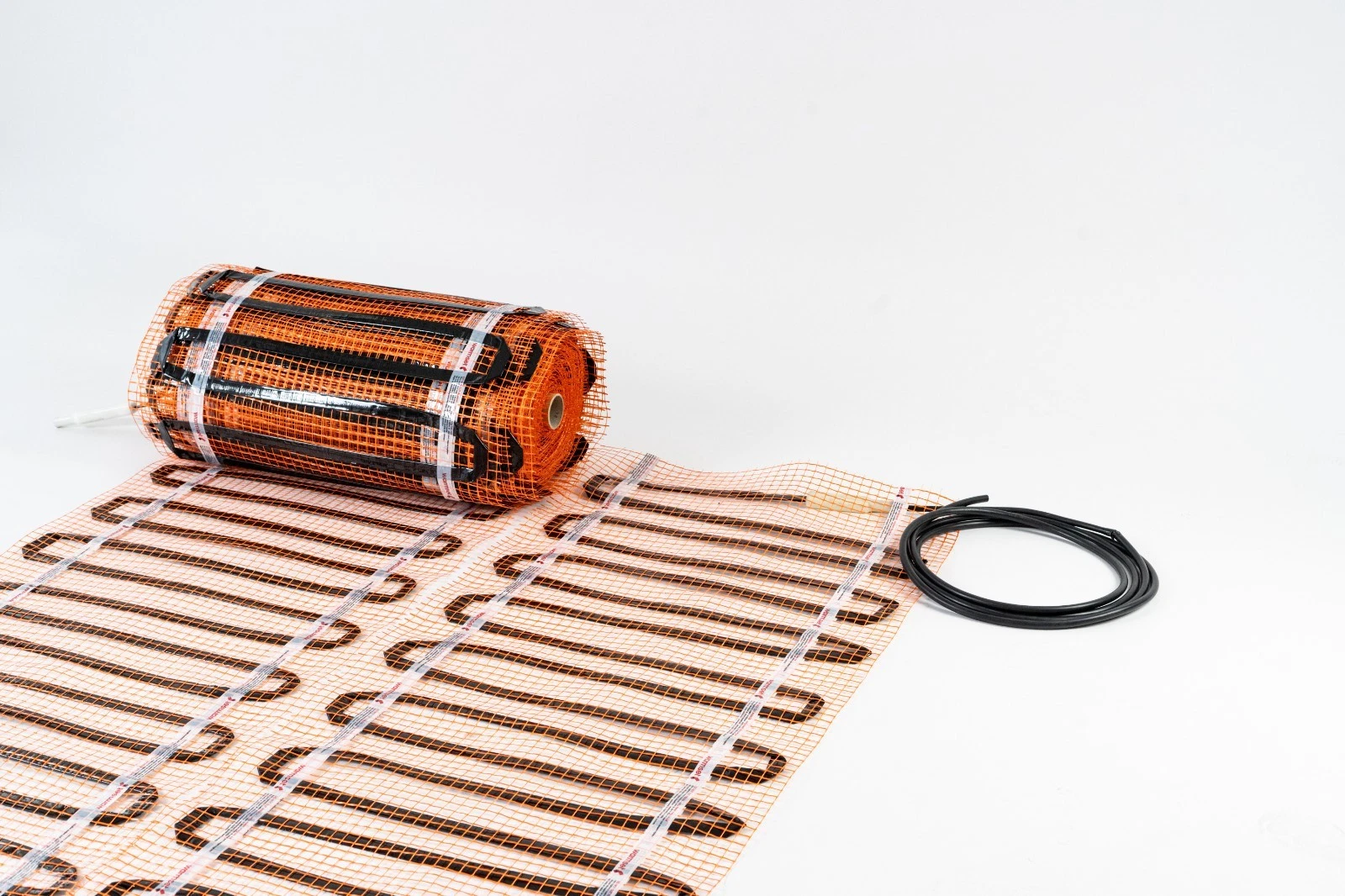

Warmset Black 230V Electric Underfloor Heating Mat

Warmset Black Electric Underfloor Heating Mat

The Warmset Black electric underfloor heating mat is an ultra-thin 230V heating system designed to provide fast, even and comfortable radiant floor heating.

Using patented Warmset heating technology, closely spaced heating elements distribute warmth consistently across the floor surface while maintaining a low installation height.

Available in 120W/m², 150W/m² and 200W/m² power options and heated areas from 0.5m² to 14m², the system can be selected for a wide range of residential and commercial installations.

Ultra-Thin 3mm Heating Mat

The Warmset Black heating mat is approximately 3 mm thick, with connection ends measuring up to approximately 6 mm.

Its low-profile construction helps minimise additional floor build-up and makes the system particularly suitable for renovation and retrofit heating projects.

The mat can be installed:

• Directly in compatible tile adhesive

• Within suitable levelling compound

Always follow the manufacturer’s installation instructions and the requirements of the finished floor covering.

120W/m², 150W/m² & 200W/m² Options

Warmset Black is available in three heating outputs:

120W/m²
Lower-output option for compatible well-insulated areas and applications with lower heating requirements.

150W/m²
A versatile option for many standard electric underfloor heating installations.

200W/m²
Higher-output option for compatible installations requiring increased heating capacity.

The correct output should be selected according to room heat loss, insulation, floor construction and the intended use of the heating system.

Even Heat Distribution

Warmset uses closely spaced heating elements with approximately 2.5-7 cm spacing.

This helps distribute heat consistently across the floor and minimise noticeable hot and cold areas.

Unlike conventional radiators, the heating system remains completely hidden beneath the finished floor.

Compatible Floor Coverings

Warmset Black can be incorporated into compatible floor constructions beneath finishes including:

• Tiles

• Laminate

• Vinyl

• Other compatible floor coverings approved for electric underfloor heating

Always check the flooring manufacturer’s maximum temperature and installation requirements before fitting the heating system.

Thermostat Temperature Control

The electric underfloor heating mat should be used with a compatible thermostat to regulate floor or room temperature.

Depending on the selected controller, thermostat functions may include:

• Precise temperature adjustment

• Floor temperature limiting

• Programmable heating schedules

• Automatic heating programs

• WiFi and app control

Correct temperature control improves comfort and prevents unnecessary heating.

Suitable for Different Rooms

Warmset Black can be used in compatible areas including:

• Kitchens

• Living rooms

• Bedrooms

• Offices

• Suitable bathroom areas

• Commercial interiors

Bathroom installations must comply with the manufacturer’s instructions and applicable electrical regulations.

This 230V system should not be installed in electrical zones where mains-voltage heating equipment of this type is not permitted.

Protective Grounding

The Warmset Black system incorporates a fully grounded mesh as part of its electrical safety construction.

Correct installation, electrical protection and testing remain essential for safe operation.

Italian Warmset Technology

Warmset Black is a patented heating system manufactured in Italy.

According to the supplied product information, certifications include:

• NEMKO

• BEAB

• UL

• CE

• NF

• TÜV

• TCNA

The heating mat comes with a 10-year manufacturer’s warranty.

Key Features

• 230V electric underfloor heating mat

• 120W/m², 150W/m² and 200W/m² options

• Heated areas from 0.5m² to 14m²

• Approximately 3 mm mat thickness

• Up to approximately 6 mm at connections

• Closely spaced heating elements

• Even radiant floor heating

• Fully grounded mesh

• Suitable for tile adhesive installation

• Suitable for compatible levelling compounds

• Thermostat controlled

• Silent operation

• Manufactured in Italy

• 10-year manufacturer’s warranty

Frequently Asked Questions

What is an electric underfloor heating mat?

An electric underfloor heating mat contains pre-positioned heating elements designed to provide evenly distributed heat beneath a compatible finished floor.

What power options are available?

Warmset Black is available in 120W/m², 150W/m² and 200W/m² versions.

What sizes are available?

The current range covers heated areas from 0.5m² up to 14m².

How thick is Warmset Black?

The heating mat is approximately 3 mm thick, with connection areas up to approximately 6 mm.

Can Warmset Black be installed under tiles?

Yes. The mat can be installed directly within compatible tile adhesive.

Can it be installed under laminate or vinyl?

The product can form part of compatible laminate and vinyl floor constructions. Always follow the flooring and heating system manufacturers’ installation requirements.

Does the heating mat require a thermostat?

Yes. A compatible thermostat should be used to control the heating system and maintain the required floor or room temperature.

Where is Warmset Black manufactured?

Warmset Black is manufactured in Italy.

What is the warranty?

The product comes with a 10-year manufacturer’s warranty.
